Applications:
Open impeller submersible pumps made of stainless steel AISI304,designed for clean or slightly dirty water,the suction grid with filter allowing a free solid passage up to 10mm .They are particularlysuitable to empty drain well of cellars and garages,tanks,pools and fountains.
Specifications
1. Power Cable: Standard cord is 10m
2. Liquid Temperature: 104°F(40℃) continuous
3. Motor: B insulation class, IP68 protection
4. Single Phase: Built in thermal protector
5. Accessories: Float switch is available

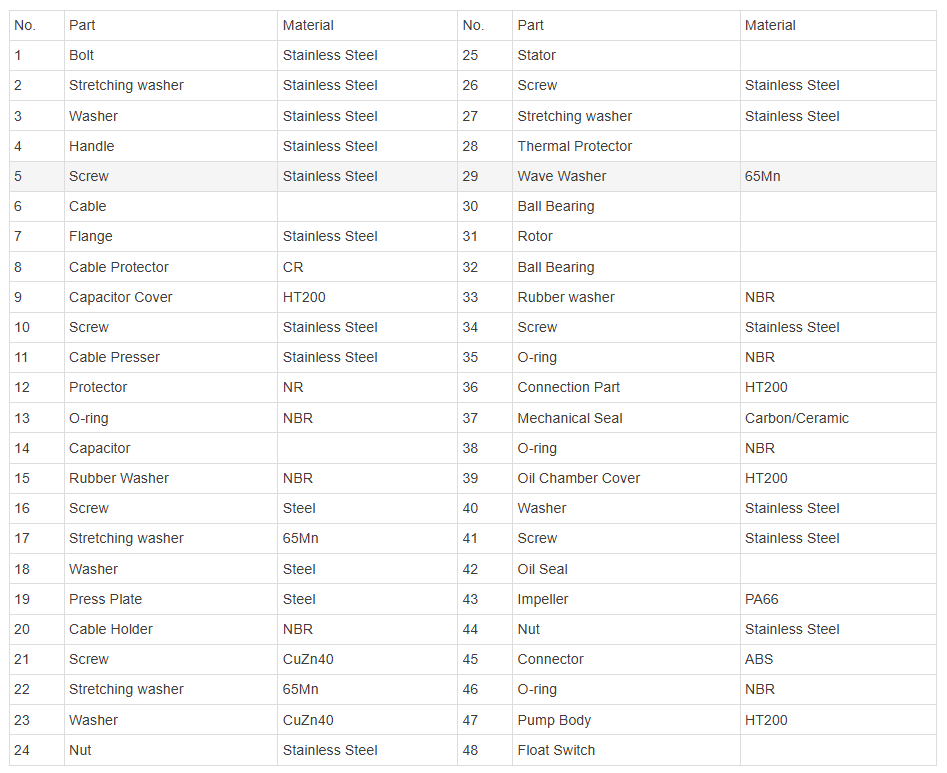

Part Specifications
1. O-ring: Buna-N
2. Motor Housing: AISI 304
3. Shaft: AISI 304 welding shaft
4. Double-sided Mechanical Seal: Buna-N elastomers
Motor side: Carbon VS Silicon Carbide
Pump side: Silicon Carbide VS Silicon Carbide
5. Impeller: AISI 304 welding
6. Pump Casing: AISI 304
